Holcomb Scrapers
Made in Holcomb KS
Sold at Farm and Home Equp.
Wathena KS

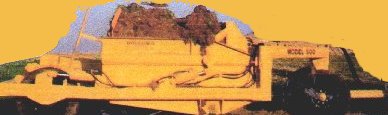

Model 800
Capacity heaped:        8yd
Capacity struck:          6yd
Width of Cut:              84"
Tire Size(front):          39by13
Tire Size(rear):           40by14
Gate:                           Hydraulically Controlled
Unloading:                  Forced Ejection
Weight:                       7,500 lb.
Horsepower
requirements:              120 horsepower
Hydraulic
requirements:              2 outlets, 15-20 GPM

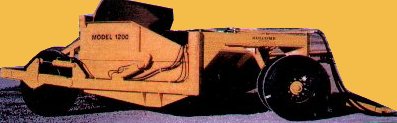

Model 1200
Capacity Heaped:          12yd
Capacity Struck:            9yd
Width of Cut:                108"
Tire Size(front):            46by16
Tire Size(rear):              20by20
Gate:                              Hydraulically Controlled
Unloading:                     Forced Ejection
Weight:                          Forced Ejection
Horsepower
requirements:                 180 Horsepower
Hydraulic
requirements:                  2 outlets,15-20 GPM

Model 1600
Capacity Heaped:          16 cu.yd
 Capacity Struck:           13 cu.yd
Width of Cut:                120in.
Transport Clearance:     16in
Tire Size(front):            20.5 by 25
Tire Size(rear):              23.5 by 25
Front Gate:                     Hydraulic Controlled
Unloading Gate:             Forced Ejection
Weight:                           18,000lbs.
Horsepower
requirements:                 220 Horsepower minimum

If you are interrested in any of these,
you can E-mail us or give us a call
at :1-800-989-4978
